CPU options |
intel Core i5-1335U, 10 cores 12 threads, 12M Cache, up to 4.60GHz intel Core i3-1215U, 6 cores 8 threads, 10M Cache, up to 4.40GHz intel Core i5-1235U, 10 cores 12 threads, 12M Cache, up to 4.40GHz intel Core i7-1255U, 10 cores 12 threads, 12M Cahce, up to 4.60GHz |
|
Memory Types |
1x SODIMM DDR5, max support 32GB |
|
Hard Drive Types |
Support 1x M.2 NVME SSD 2280 support 1x 2.5 inch SATA |
|
Graphics |
Processor Graphics |
|
Ethernet |
2 x GbE RJ45 Realtek 8111H, support Wake on LAN, PXE |
|
USB |
4 x USB3.0, 4 x USB2.0 |
|
COM |
2 x DB9 RS232 |
|

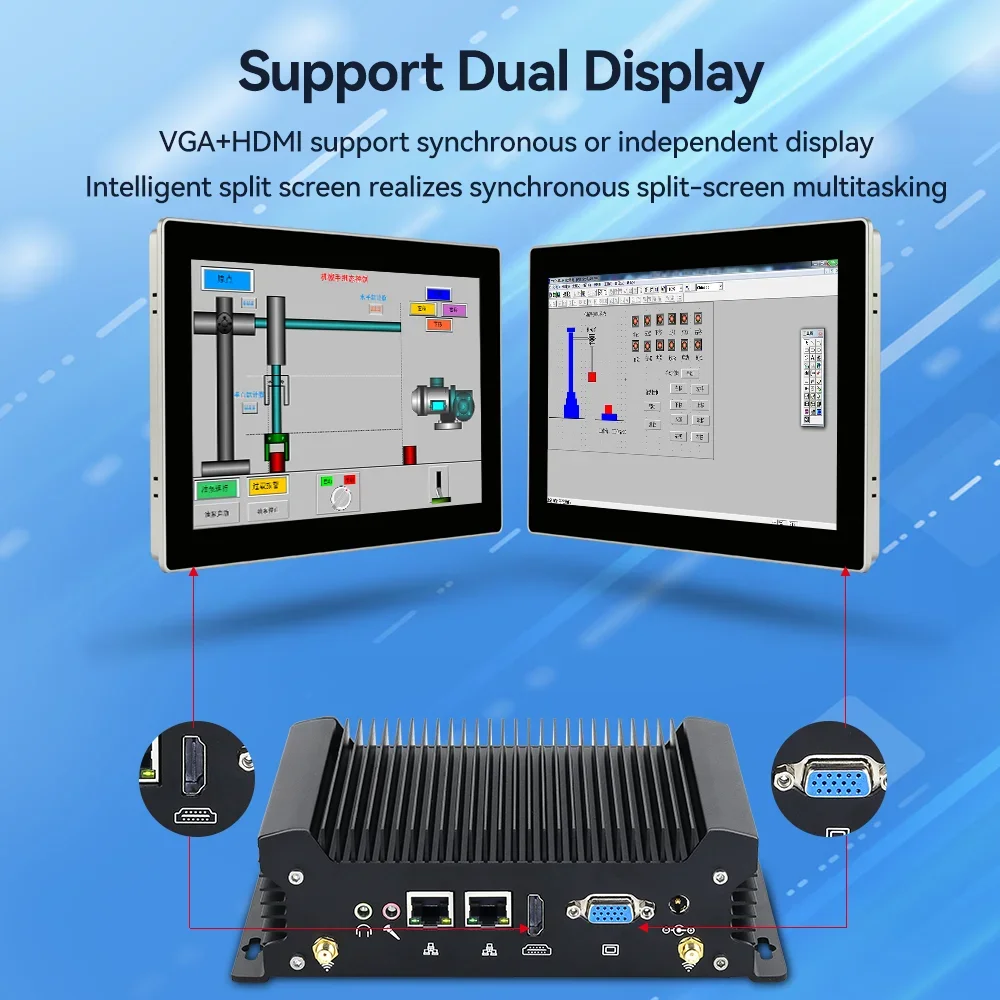

Display |
1 x HDMI2.0 ( max 4096×2034@60Hz) 1 x VGA ( max 1920×1080@60Hz ) Support independently video output |
|
Audio |
1x Earphone IN, 1x Microphone |
|
Wireless |
1x M.2 slot for WiFi/BT/4G LTE 1x SIM card slot on-board |
|
OS Support |
Windows 10/11 Ubuntu LINUX |
|
Others |

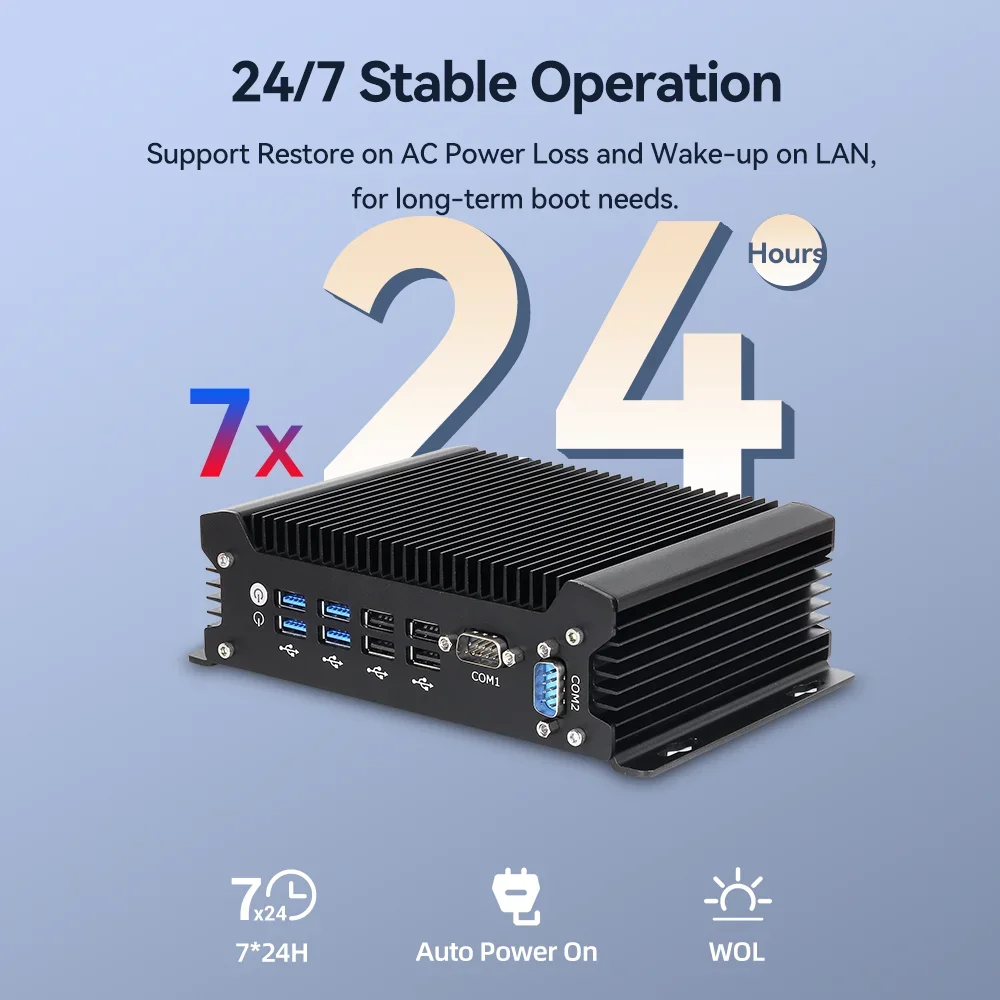

Support Wake on LAN, PXE, Watchdog, Auto power on after power loss |
|
Working Voltage |
DC19V-4.7A |
|
Dimension |
193.9 x 127 x 57.2 mm |
|
Netweight |
1KG |
|
Storage Temperature |
-30℃ to +70℃ |
|
Working Temperature |
-20℃ to +60℃ |
|
Relative Humidity |
10%~90% @30℃，non-condensing |
|

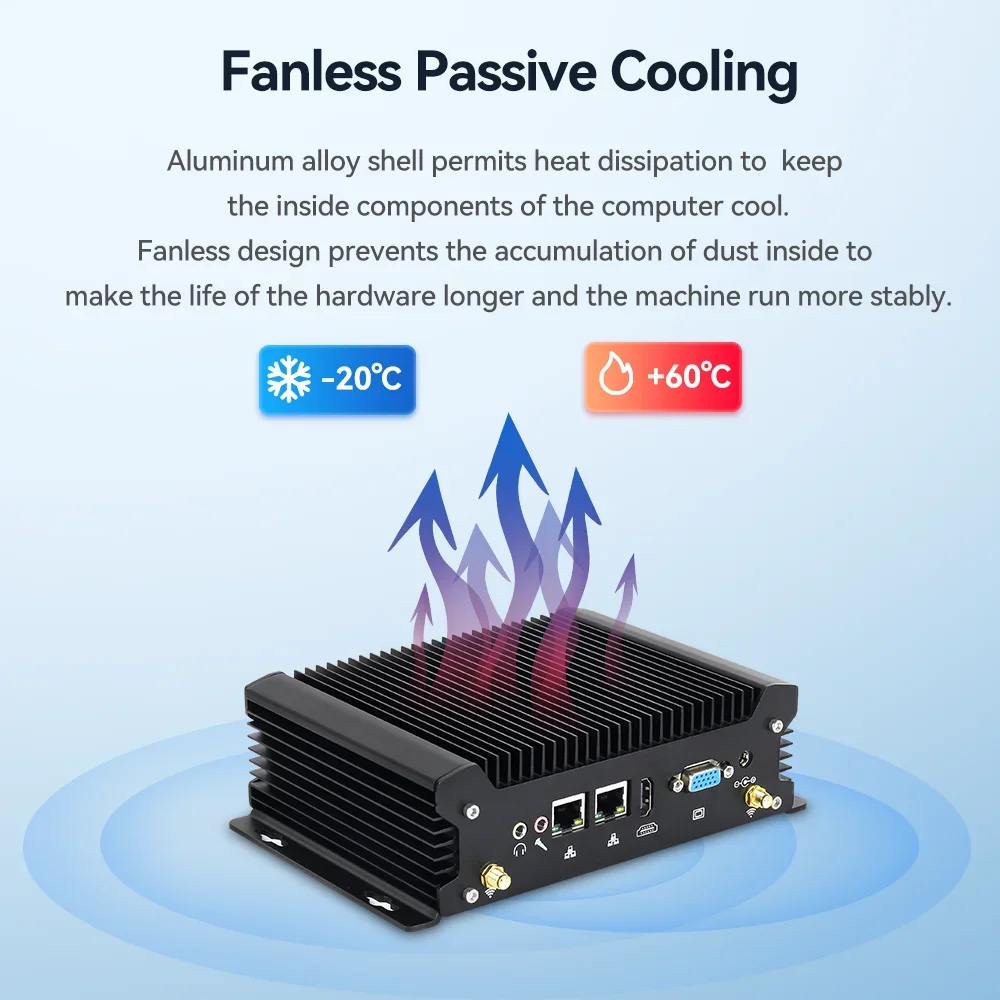

Cooling |
Fanless passive cooling |
|
Package |
1x Mini PC Please NOTE: mini PC comes without 4G LTE module installed, please contact us if you need to add to mini PC. |
