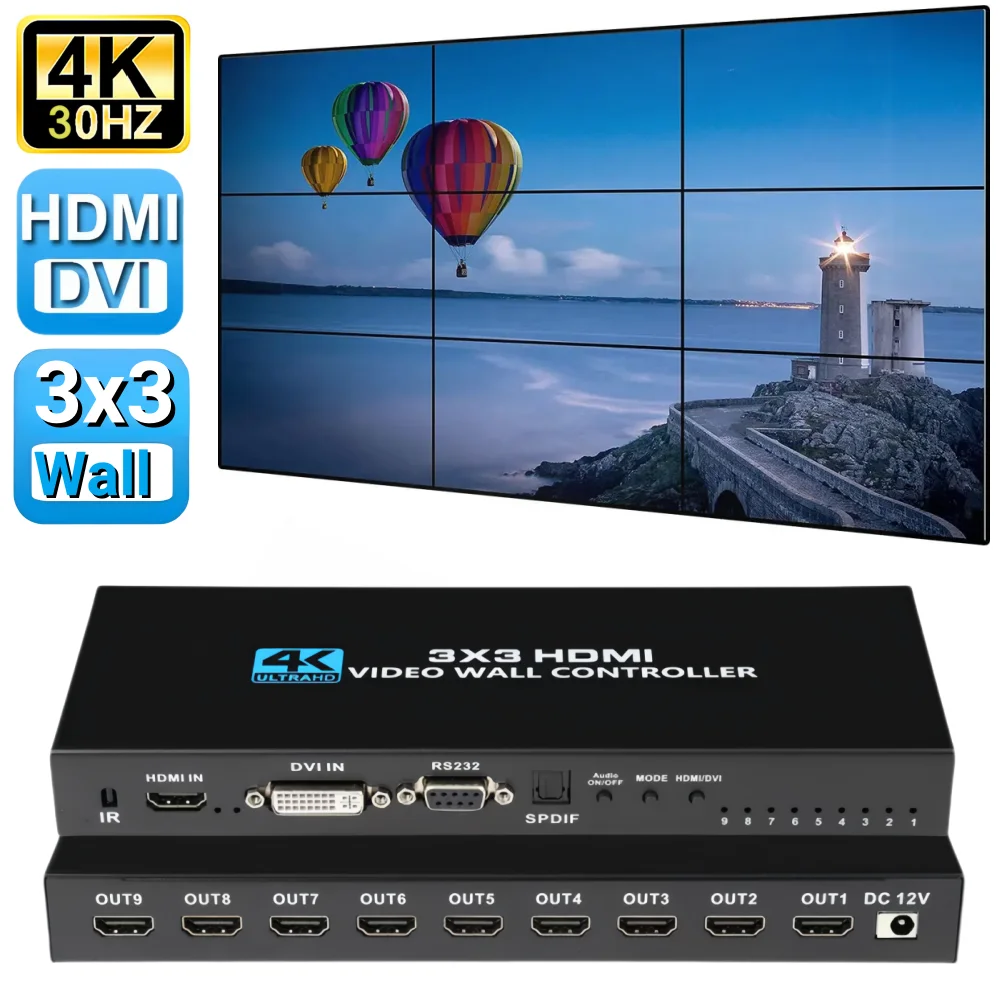

3×3 4K HDMI Video wall controller 2×2 HDMI DVI TV Video wall Processor 1X2 2×3 4X2 multi video screen processor switcher splicer

(2×3 Don’t support DVI input )

• 【Eye-catching video walls 】HDMI video processor allows you to create a gorgeous large-scale video walls and digital signage displays via LCD splicing screens.HDMI signal interface with audio decoding, audio and video perfect synchronization, so stunning!

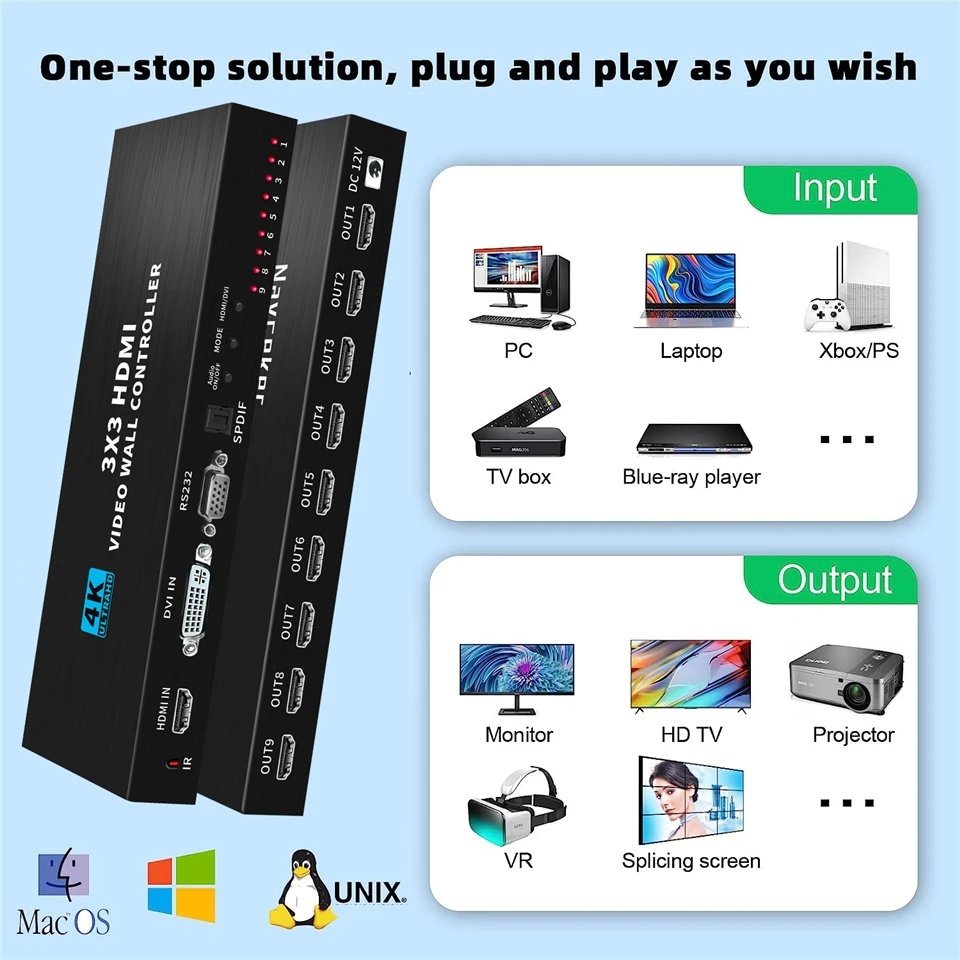

• 【1 Input and 9 outputs】Display HDMI/DVI(2×3 Don’t support DVI input ) input 4K@30Hz ,output 1920x1080P@60Hz. Be ompatibled with laptop,computer, set-top box, DVD player etc. Supports one 4K@30Hz signal input and nine 1080P@60Hz signal outputs, with a total output resolution of 4K.

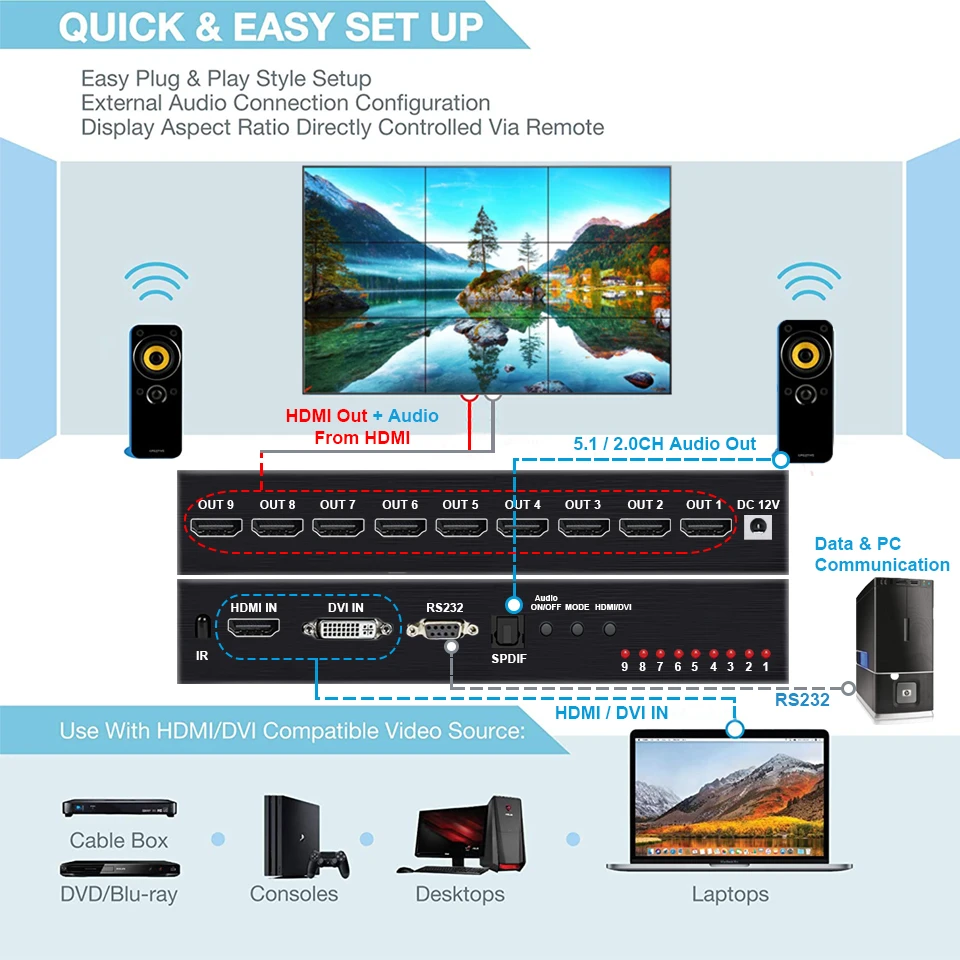

• 【Plug and play,180° Rotation】No need any app,quick and easy set up.Support 180°screen rotation function,the output device requires no more than 1080p @ 60 Hz.

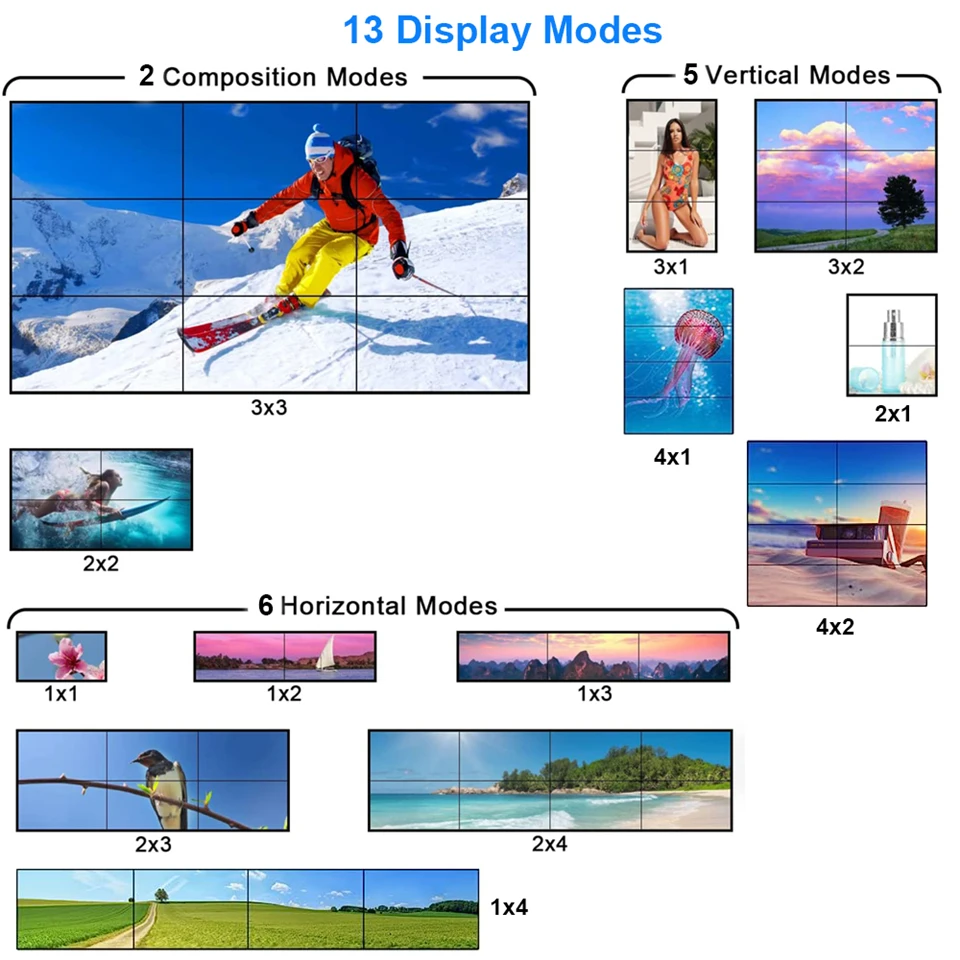

• 【13 Display Modes】Support  1×1,1×2, 1×3, 1×4, 2×1, 2×2, 2×3, 2×4, 3×1, 3×2, 3×3, 4×1, 4×2 modes for your choice. Can control it fastly via remote control or push button directly. Ideal for television broadcasting,video conferencing, security monitoring and other indoor and outdoor large screen splicing display.

• 【Specification】 ◆HDMI/DVI input: 3840x2160P 24/30Hz and below input. Support input HDMI 1.4, HDCP 1.4; ◆HDMI outputs: 1920 x 1080P@60Hz HD resolution output;

• 【5.1 CH Audio Out Ports】5.1 CH Audio is an optical audio output for lossless digital sound,it can be connected to external speakers, sound bars, amplifiers, etc. To ensure work well, plz set the resolution of all screens to 1080p.

• (2×3 Don’t support DVI input )

Features:
Support 1 HDMI-Compatible input

Support input HDMI-Compatible / DVI

Support 9 HDMI-Compatible outputs

Support 1 x Optical SPDIF audio with 5.1CH audio

Support input 4K 30Hz,1920x1080P,24/30/50/60HZ,and lower resolution

Support output resolution 1920x1080P

Support multiple splicing modes, easy to operate, plug and play

Support Panel switch,IR remote control and RS232 remote control

Multi screen splicing "seamless mixing

Porous design convection heat dissipation

Non slip design is stable and non slip

How I could use the 180-degree rotation on it?

If you want to use the 180° rotate, there are two conditions. 1. 2×2 mode, it means you need 4 screens. 2. your input and output devices need to be no more than 1080P@60HZ. If your output devices are 4K, please adjust it to 1080P.

Why is there no sound？

Please make sure that your input and output device is 1080P.

Our product has updated the software and it can support the audio out to any kind of TV.

It does really work with the audio out.

Why is the remote not work？

Please check your input and output device’s resolution is 1080P. It can work properly in the resolution of 1080P.

How to do if it doesn’t work with the 1×3 portrait mode？

Please adjust the resolution to 1080P of the input and output device.

Note that：Please use the 2×2/3×3 mode if you want to use on the game. It will show great on the 2×2 /3x3mode.

Package List:

1xTV  Video wall controller

1x 12V DC Power adapter

1xRemote control(without battery)

1xUser manual
